Measure the porosity of the distribution medium(DM)

发布于 2023-06-12  175 次阅读


Please refresh the page if equations are not rendered correctly.
---------------------------------------------------------------

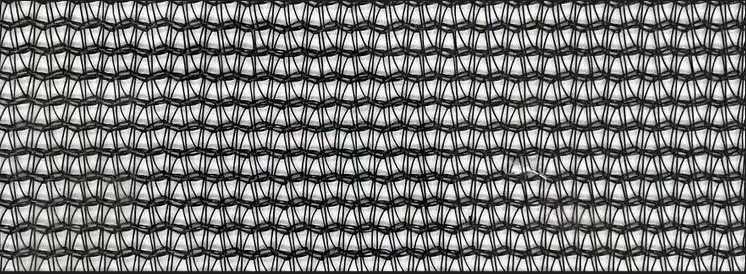

1. Take the pictures without significant shadow

2.Open ImageJ,File--Open--select the object image

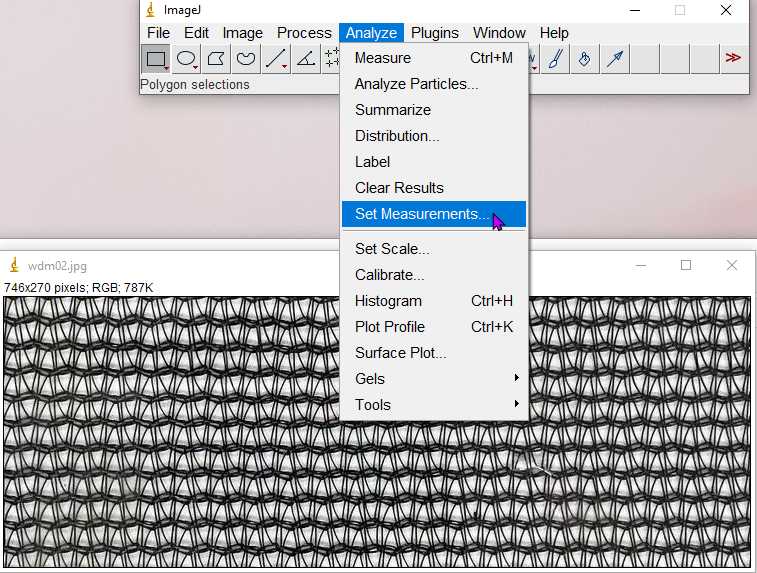

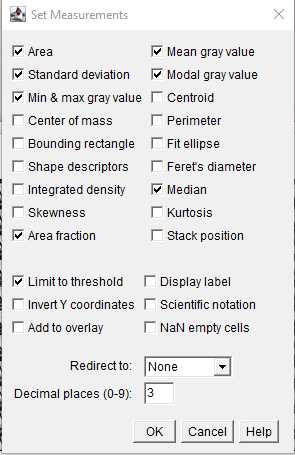

3.Analyze-set Measurements

the objective is to measure the porosity(V_pore/V=(hArea_all-hArea_DM)/hArea_all)
so the Area and Are fraction are mandatory to select

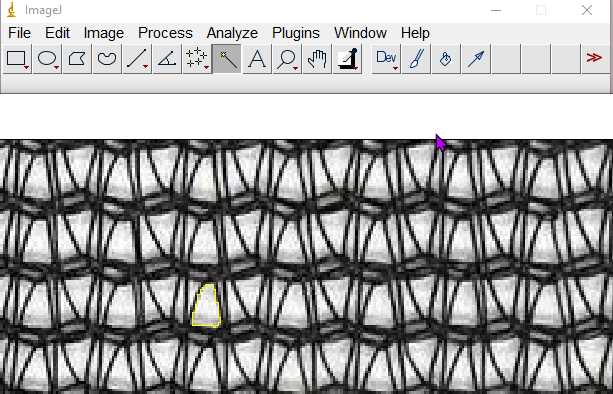

4.Wand tool(single-click)-click on a random pore in the image

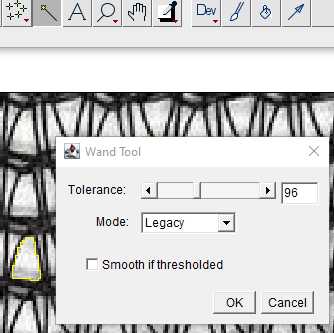

double-click the wand tool and then adjust the tolerance to fit the pore

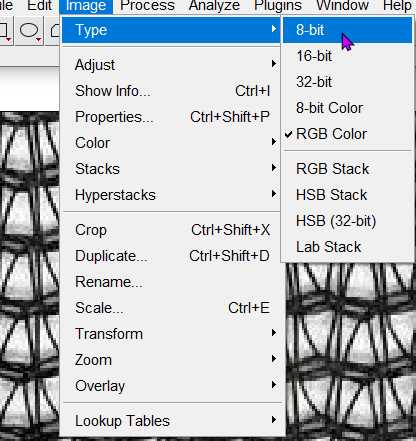

5.Transfer to grey-scale map

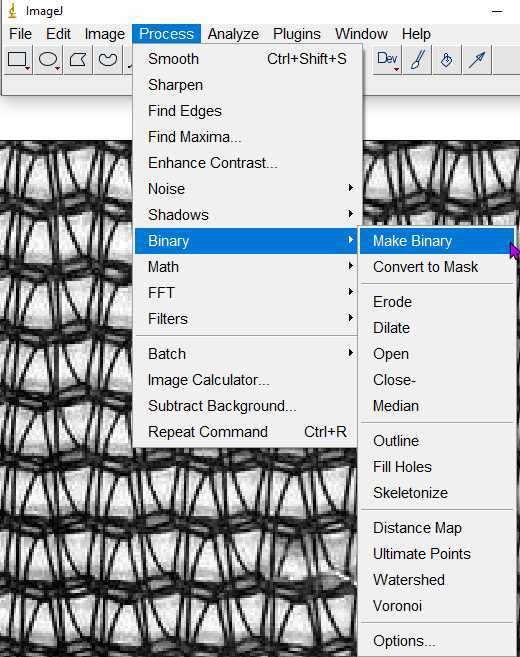

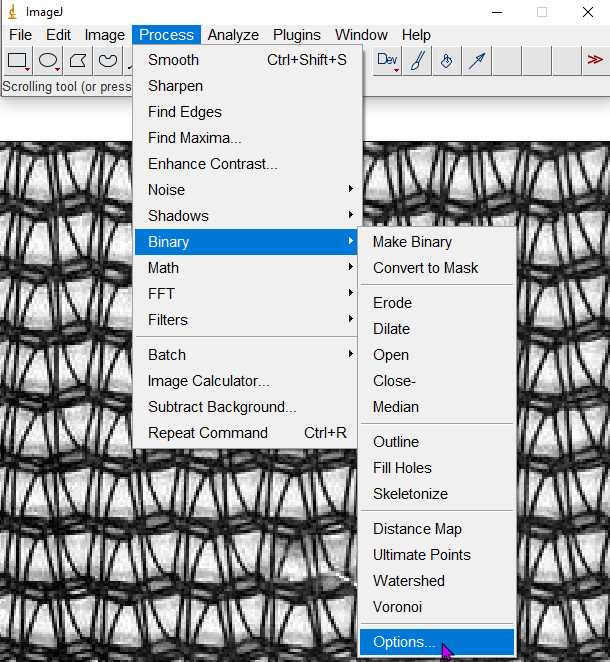

Make sure the options are set before make binary(default settings)

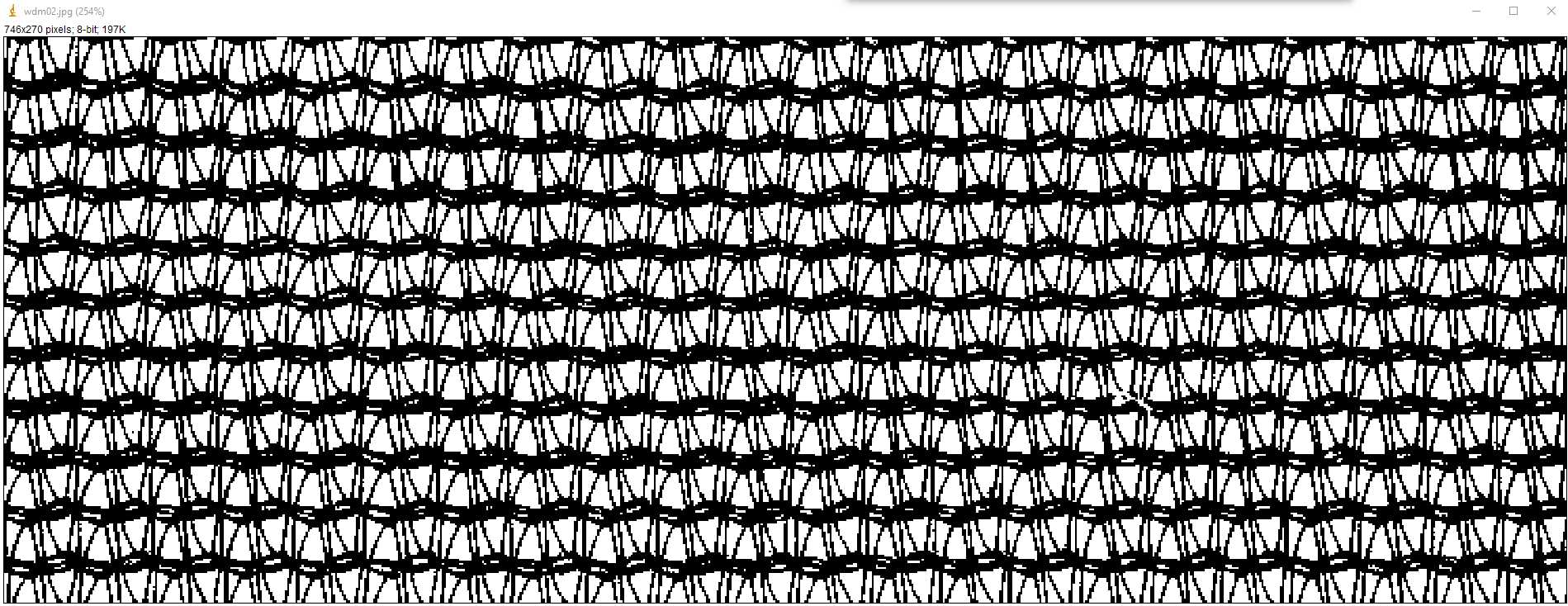

6.Set threshold

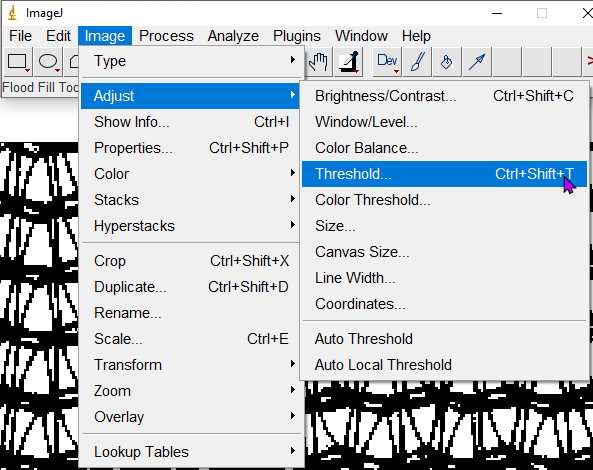

Image--adjust-threshold

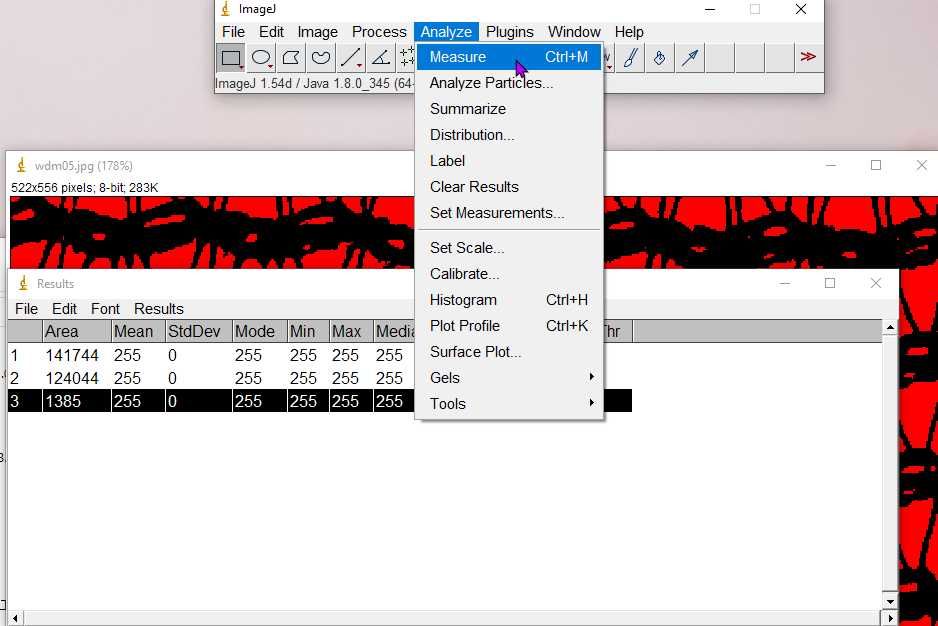

7.Analyze-Measure


use "Rectangle" to measure local porosity
